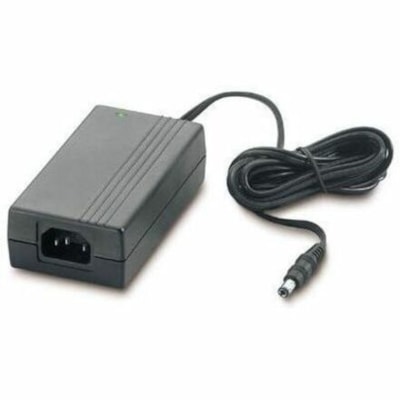

APC Universal Power Adapter - 24 V DC Output - Black

AP9505I
Also known as DHAP9505ICA,IM90550L

APC Universal Power Adapter - 24 V DC Output - Black

New! Log in or create an account to see price and availability


MARKETING INFORMATION

External power supply that provides additional power for select NetBotz appliances

DETAILS

  • Output Voltage : 24 V DC
  • Color Family : Black
  • Product Color : Black
  • Height : 2.76" (70 mm)
  • Width : 3.74" (95 mm)
  • Depth : 2.76" (70 mm)
  • Weight (Approximate) : 12 oz (340.19 g)
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year
  • Additional Warranty Information : 2 years repair or replace
  • Good power efficiency and comparatively light weight
  • Delivers 24 V DC to ensure that your device is always ready to use

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number AP9505I
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Name Universal Power Adapter
Product Type AC Adapter
Output Voltage 24 V DC
Color Family Black
Product Color Black
Height 2.76" (70 mm)
Width 3.74" (95 mm)
Depth 2.76" (70 mm)
Weight (Approximate) 12 oz (340.19 g)
For Country/Region United States
Additional Information

Connectors:

  • IEC320-C7(Power)
  • BS-1363(Power)

Environmental:

  • Operating Environment: 0°C to 45°C (32 - 113°F)
  • Storage Temperature: -15°C to 45°C (5 - 113°F)
  • Operating Relative Humidity: 0 to 95 %
  • Storage Relative Humidity: 0 to 95 %
  • Operating Elevation: 0 to 10000 feet (0 - 3000 meters)
  • Storage Elevation: 0 to 50000 feet (0 - 15000 meters)
Certifications & Standards AS/NZS 3548 (C-Tick) Class A|cUL Listed|CE|EMC Directive 2004/108/EC|Low Voltage Directive 2006/95/EC|PSE|UL Listed|VCCI Class A|VDE
Product Take Back Program No
Mercury Free Yes
RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP9505I_ROHS_DECLARATION&p_FileName=AP9505IKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759508&lang=en-us
EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759508&lang=en-us
Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512011_EN
End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512011_EN
REACH free of SVHC Yes
Toxic Heavy Metal Free Yes
Lead Free Yes
WEEE Statement The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
Additional Warranty Information 2 years repair or replace
