MARKETING INFORMATION

Tripp Lite's Dual Link DVI Extender increases the length of your DVI cables beyond the recommended 5-meter distance limitation. Ideal for use with Tripp Lite 50ft and 100ft DVI cables. Works with Single or Dual Link DVI cables. Just plug the longer DVI cable into the video source, and the B120-000 into the other end (requires nearby power outlet ). Attach a short DVI cable from the adapter to the monitor. Supports resolutions up to 1920x1200, and is HDCP compliant. One Year warranty.

DETAILS

• Height : 0.50" (12.70 mm)
• Width : 1.50" (38.10 mm)
• Depth : 2.80" (71.12 mm)

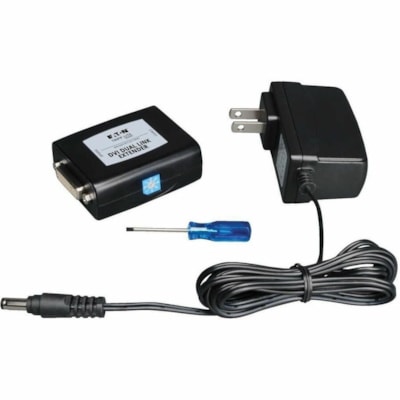

• Package Contents :
  • B120-000 DVI Dual Link Extender Adapter
  • DVI Dual Link Extender
  • AC Power Adapter
  • Manual
• Additional Information :
  • Extend DVI signals an additional 135ft, for a total of 150ft
  • Supports WUXGA resolution to 1920x1200
  • Works with Single or Dual Link DVI cables
• Certifications & Standards :
  • HDCP
  • CE
  • FCC
• Country of Origin : Taiwan
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 3 Year

• Extend a DVI-D Dual Link signal up to 150 ft. from the source
• Use P560-Series DVI Dual-Link cables in most applications.
• When extending a 2560 x 1600 video signal more than 75 ft., use cable made with 24Awg wiring
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
